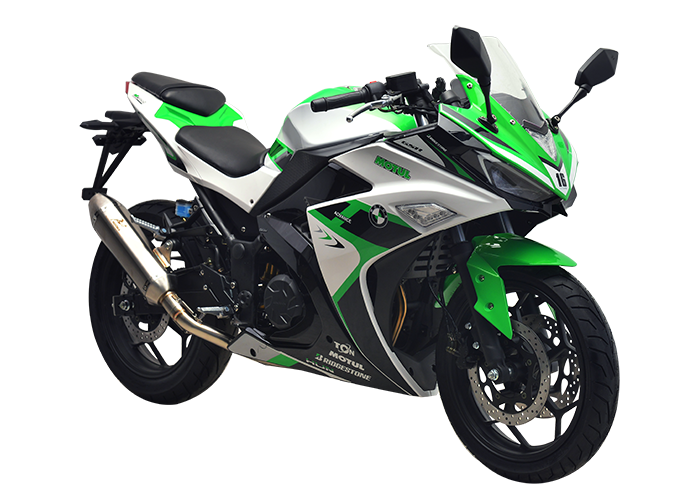

JT250-22
Product Details
| ENGINE | |
| Engine Type | CB engine, single cylinder, air cooled, 4 stroke, balance shaft |
| Bore and Stroke | 65.5 x 66.2 mm |
| Displacement | 223.0 ml |
| Compression Ratio | 9.14:1 |
| Maximun Power | 12.5 kw / 8500r / min |
| Maximun Torque | 18.0 N.m / 7000r / min |
| Transmission | 6 gear shifting |
| Ignition | CDI |
| Starting | Electric & kick starting |
| Clutch | Hand clutch |
| CHASSIS / SUSPENSION / BRAKES | |
| Front Suspension | Hydraulic damp |
| Rear Suspension | Mid-ship single spring shock absorber |
| Front Brake | Double disk |
| Rear Brake | Single disc |
| Front Tire | 110/70-17 |
| Rear Tire | 140/70-17 |
| DIMENSIONS | |
| Height | 1135 mm |
| Width | 705 mm |
| Length | 2055 mm |
| Wheel Base | 1390 mm |
| WARRANTY | |
| 1 year or 6000km factory warranty |
